Post by Amanda on Apr 1, 2019 17:15:56 GMT

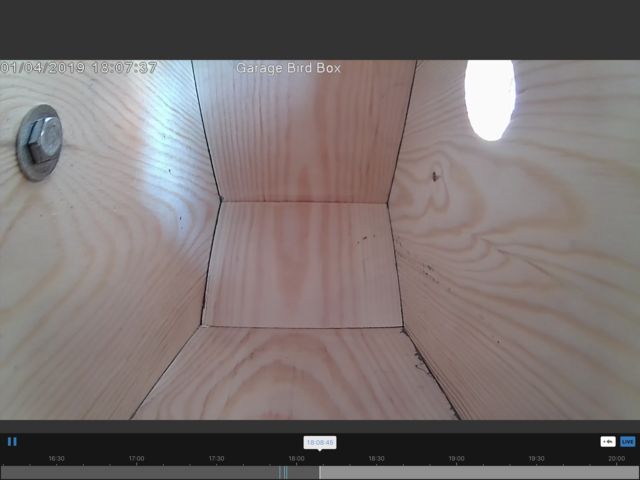

Can you build things and get the correct measurements with this sketch Up? Sounds good Oh Paul.....the sideview has too many mitres!! Here is a photo of inside the birdbox I made the other day and put it back up this morning with the camera the correct way up
|
|
|
Post by WildlifePaul on Apr 1, 2019 17:21:10 GMT
Great angle / view Amanda, You've done really well with making this!
|
|
|
Post by matt on Apr 1, 2019 18:26:56 GMT
That view looks absolutely perfect Amanda, well done!
|
|
|
Post by Amanda on Apr 1, 2019 19:02:51 GMT
Thank you, I’m pleased with it, especially being able to see the entrance hole too. I’m waiting for the paint to dry on my other box I have made today then I will fit the camera.I have got some thin plywood to make the wall between the camera and the main box. Hopefully I will put that up tomorrow instead of that very first box I made.That’s me done then as I am working the rest of the week.
|
|
|
Post by matt on Apr 2, 2019 12:57:27 GMT

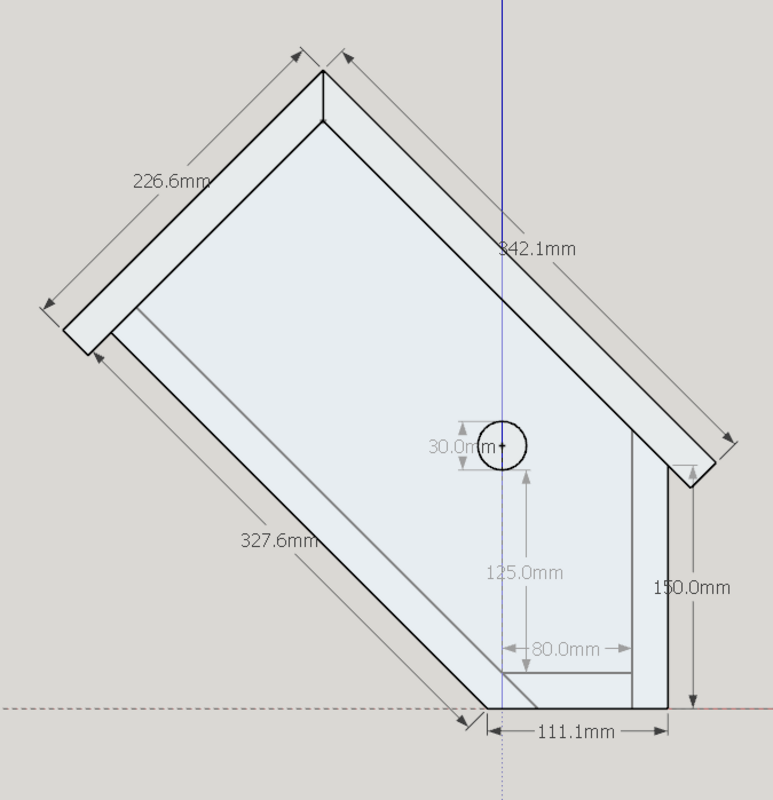

Reacquainted myself with Sketchup this morning (whilst I was supposed to be working ). Here's a rough idea of what is possible - it is very useful to help work out the dimensions required for the less obvious bits. This is only a rough idea - the pieces are there but dimensions need working on. It's very long/tall at the moment, because I want to have plenty of room for camera + other bits, and I plan to work out exactly where to put the camera for best view hopefully before building it. This model is based on 22mm stock. If anyone wants to try Sketchup I strongly recommend it - it is free. Best to start with a tutorial (I like this one) otherwise you can end up tearing your hair out.
|
|
|
Post by karenupnorth on Apr 2, 2019 13:07:16 GMT
Thats brilliant Matt, I got a double D in graphics at school so I will leave well alone!
|
|
|
Post by Amanda on Apr 2, 2019 15:00:08 GMT
That’s fab Matt, I might have a go when I get a chance. Keep us updated
|
|
|
Post by blueeyedchick on Apr 2, 2019 16:04:27 GMT
Hubby got a 'B' grade in Woodwork in 1969 so I'm sure he could make me a side view one, he made a fantastic Rabbit Hutch years ago but it was so sturdy nobody could lift it -jeez Good job he decided to do Electrics!!!! Nice box though Amanda you clever clogs!
|
|
|
Post by Amanda on Apr 7, 2019 12:26:10 GMT
Hi Matt,
Does sketchup show the mitre angles please? If so, is that base mitre 45 degrees or slightly off?
Many thanks Amanda
|
|
|
Post by matt on Apr 7, 2019 12:59:43 GMT
All angles are 45 degrees Amanda. I wouldn't necessarily take any dimensions from this model as its just a rough idea. In particular it is too long I think, but I wanted to make sure there was enough room for the camera gear behind a false ceiling - you might do this bit differently. Easy to adjust those lenghts though just by subtracting the same amount from each. Can spin model and show other dimensions if you want.
|
|
|
Post by Amanda on Apr 7, 2019 16:43:30 GMT
Oh yes please I have downloaded Sketchup but it’s over my head I haven’t looked at any videos or help files though (yet!) It is half term, so nothing like that will happen until after Easter now
|
|
|
Post by matt on Apr 7, 2019 21:44:44 GMT
|
|
|
Post by twinkle on Apr 7, 2019 22:36:51 GMT
I've just been catching up on here and found the bird box making very interesting. I find it quicker to buy the boxes now, but i think i will have a go at making one for next year. I returned the last one i bought as the roof was split. the overheating camera had to go back as well. If all the pieces are cut out it can be put together by children. A good idea for presents.
|
|
|
Post by matt on Apr 8, 2019 11:34:29 GMT
Good idea Twinkle - I know my sister is keen to get one for her kids, so perhaps I will make the pieces for her.
Amanda - just had a though. Bear in mind that these measurements depend a lot on the thickness of the wood that you are using. Let me know what wood you are using and I could modify it for you..
|
|
|
Post by elle on Apr 8, 2019 19:59:30 GMT
I am just in awe of all you clever people The only thing I was good at was giving birth to 2 children Elle xx
|
|
|
Post by Amanda on Apr 8, 2019 20:21:53 GMT
Hi Matt, Thanks for the offer and sorry for the slow response. The last wood that I got from the wood yard was 1.8cm, they put it through this sander thing, but I noticed it had splits in it. He did say that it can do that. Please can you do one for 2cm. Once I can get the measurements perfect, I will build in cedar, which is so light. The measurements that Paul did, were perfect size for adding a camera and connections. (There is quite a big one with a POE camera) Thanks for doing this Matt Ps, thanks for the link
|
|
|
Post by matt on Apr 9, 2019 14:14:47 GMT

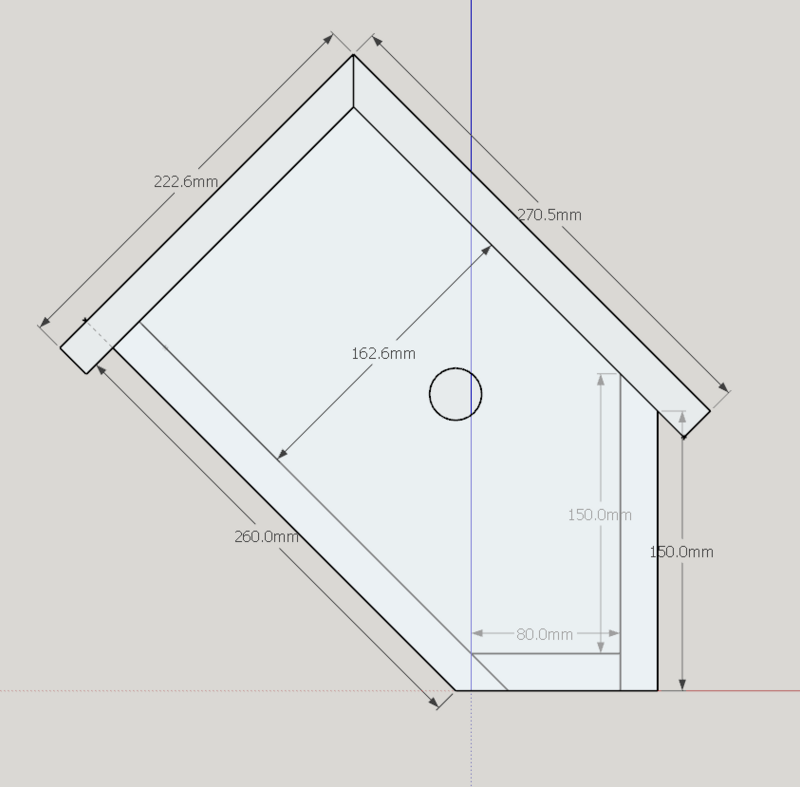

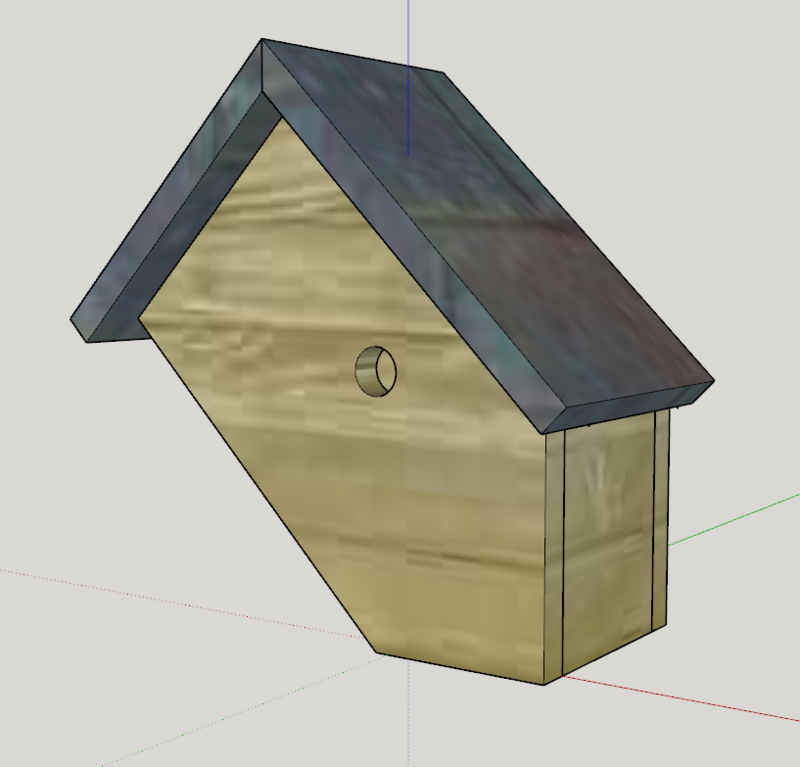

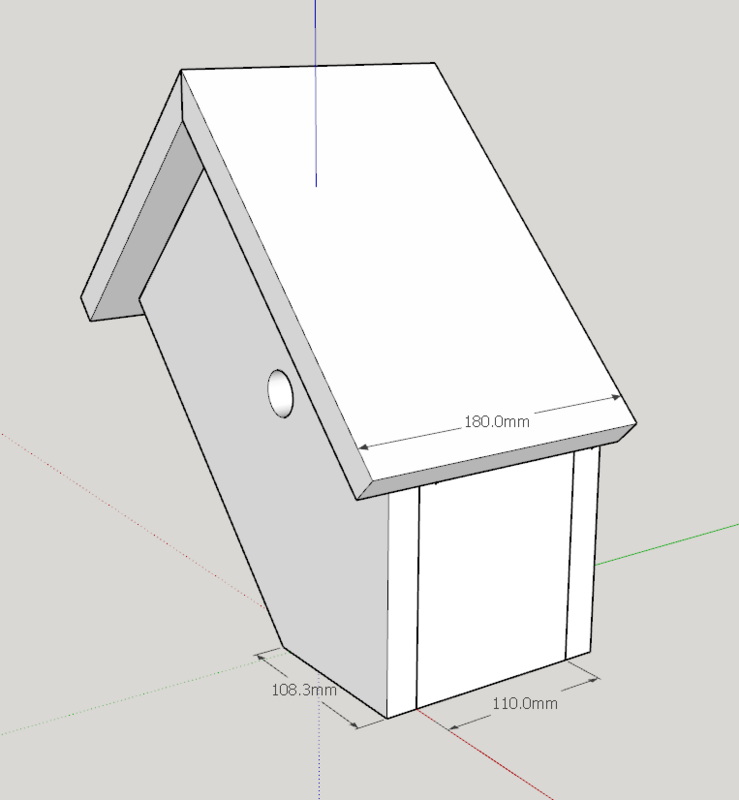

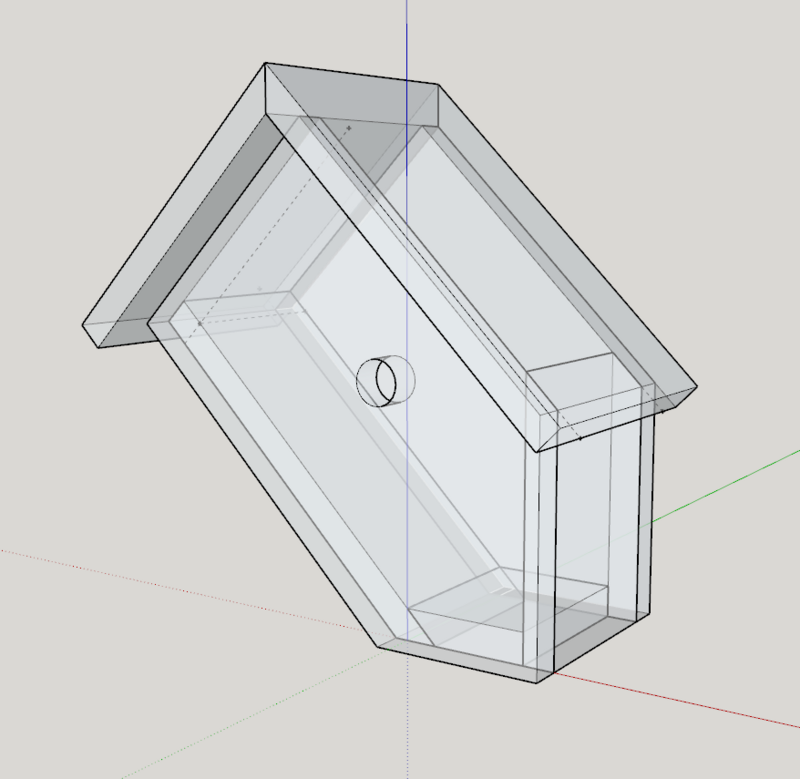

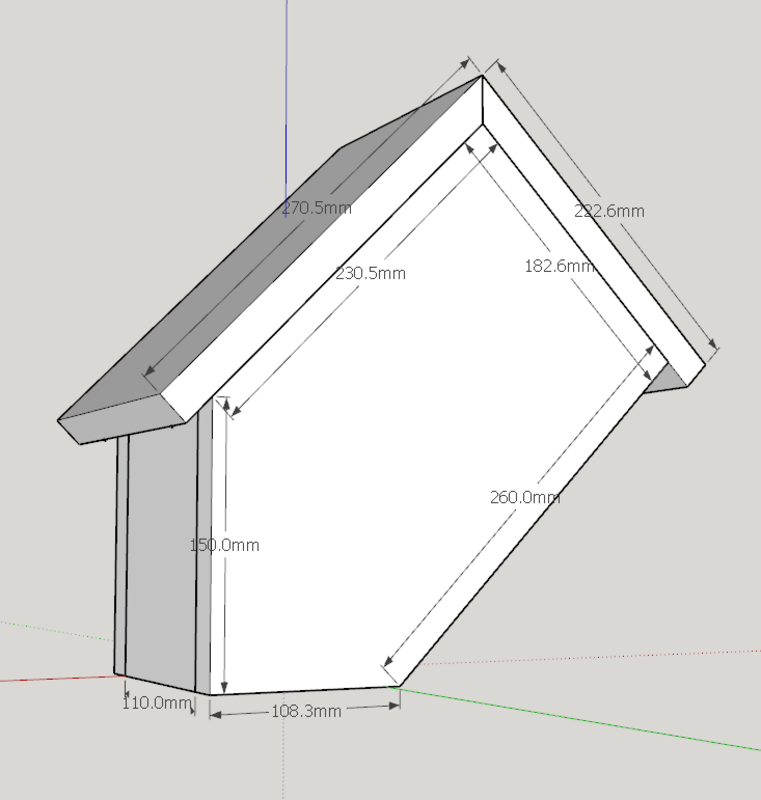

Here you go Amanda. All wood is 2cm, inside dimension of base is 11cm x 8cm and all angles are either 45 or 90 degrees (or 135 degrees, if you want to be pedantic!). I can add measurements anywhere you need, but should be enough here. If you want to make the box longer/taller then you can just add a fixed value to long roof piece and three sides. Roof overhangs 3cm at front and 2cm at each side - obviously you can adjust to preference. Front. Note hole is 28mm here, and measurements are shown to the centre of the hole. Bottom of hole is 125mm from internal base, which is RSPB guidelines: Front again in x-ray view showing some internal dimensions: Back (note that the side panel is the same size as front, just without the hole):
|
|
|
Post by suep on Apr 9, 2019 15:52:59 GMT
How clever you all are, and so helpful to each other. You never cease to amaze me. yahoo_clap Well done. Superb. Sue
|
|
|
Post by Amanda on Apr 9, 2019 17:59:37 GMT
WOW, that’s amazing Matt, thank you so much. I watched some of the YouTube video last night and got my laptop out. I managed to make a base and use the ‘push’ thing to make the wood 2cm thick, then I didn’t have a clue how to make the mitre on the base. I gave up then as I knew I had work the next day. Can I just ask, what size are your front and back please? I can’t see what sizes to cut from the design Many thanks again Matt
|
|
|
Post by matt on Apr 9, 2019 18:06:16 GMT
Which bits do you mean by front and back Amanda?
|
|
|
Post by Amanda on Apr 9, 2019 21:51:19 GMT
Sorry Matt, it is okay, I can see the dimensions in the last picture you upped.....I’m tired and didn’t see it properly
|
|
|
Post by matt on Aug 10, 2019 18:30:30 GMT
Amanda - quick question on paint! What kind did you use? Is it "nestboc safe"? If so, I really need to know which brand/type so that I can buy some. I've heard that water based latex is the way to go? Any thoughts?
|
|
|
Post by WildlifePaul on Aug 10, 2019 18:34:35 GMT
Use Cuprinol Garden Shades Matt, I think Amanda used this aswell, I use it on all my boxes, Comes in all different colours its a waterbased paint plus as wax in so the rain bounces off. Gives 6 years protection.
|
|
|
Post by Amanda on Sept 4, 2019 20:08:54 GMT
Hi Matt
Sorry for the late reply I used cuprinol shades, the same as Paul I find that a tester pot is enough to give one house a good few coats. There are lots of lovely colours
|
|
